描述

Agilent E8358A矢量網絡分析儀是PNA系列網絡分析儀平臺的成員，能滿足今天對元件的苛刻測試要求。通過提供快掃描速度、寬動態范圍、低跡線噪聲和靈活的連接能力，PNA系列能應對各種測試挑戰。

E8358A為夾具中和硅片上器件提供TRL/LRM校準（使用四接收器），對有源器件提供標準T偏置，以及為擴展動態范圍提供標準直接接收器。

強大的自動化和自助工具使儀器能很好適應研制開發和生產制造的需要。PNA系列有16個獨立測量通道，內裝的硬盤，并提供鼠標。

E8358A/E8803A/N3383A 300 kHz to 9 GHz

Agilent RF PNA Network Analyzer

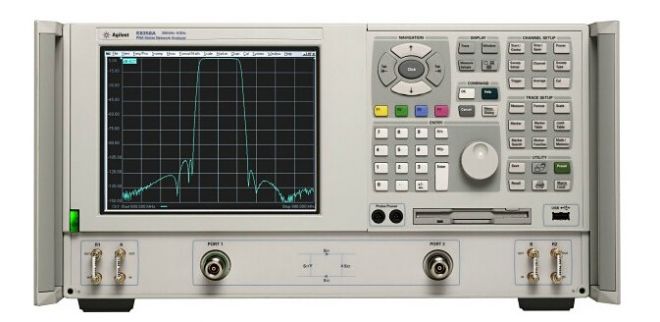

Each RF PNA instrument is an integrated network analyzer
with a built-in LCD display, hard and floppy disk drives,
S-parameter test set and synthesized source. The analyzer
has two or three 50-ohm Type-N (f) test ports. Included with
each instrument is a mouse, keyboard, CD-ROM containing a
copy of online help and programming documentation, and
a 1-year return-to-Agilent service warranty.
?  E8356A network analyzer,300kHzto3GHz,2port, 4receiver
?  E8357A network analyzer,300kHzto6GHz,2port, 4receiver
?  E8358A network analyzer,300kHzto9GHz,2port, 4receiver
?  E8801A network analyzer,300kHzto3GHz,2port, 3receiver
?  E8802A network analyzer,300kHzto6GHz,2port, 3receiver
?  E8803A network analyzer,300kHzto9GHz,2port, 3receiver
?  N3381A network analyzer,300kHzto3GHz,3port, 4receiver
?  N3382A network analyzer,300kHzto6GHz,3port, 4receiver
?  N3383A network analyzer,300kHzto9GHz,3port, 4receiver
Options
?  Option 010 time-domain capability
For viewing reflection and transmission responses in
time or distance domain.
?  Option 014 configurable test set (except E8356/7/8A)
Adds front panel access to the source, the receivers
and couplers. This provides the ability to improve
measurement sensitivity for measuring low-level signals,
or to add components and other peripheral instruments
for a variety of measurement applications.
?  Option 015 configurable test set (E8356/7/8A only)
Adds front panel access to the source output and coupler
input on both ports 1 and 2. Also, 35 dB step attenuators
are added between the couplers and receivers. This
capability provides the ability to improve measurement
sensitivity for measuring low-level signals, or to add
components and other peripheral instruments for a
variety of measurement applications.
?  Option 1CM rack mount kit
Adds a rack mount (part number 5063-9216) and rail kit
(E3663AC) for use without handles.
?  Option 1CP rack mount kit
Adds a rack mount (part number 5063-9236) and rail kit
(E3663AC) for use with previously supplied handles.
?  Option 1E1 70 dB step attenuator (Included as standard
equipment on E8356/7/8A)
Adds a built-in 70 dB step attenuator to extend the
output power range down to -85 dBm.
?  Option 1E5 high-stability time base (Included as standard
equipment on E8356/7/8A)
Replaces standard time base reference with a higher
stability unit.
