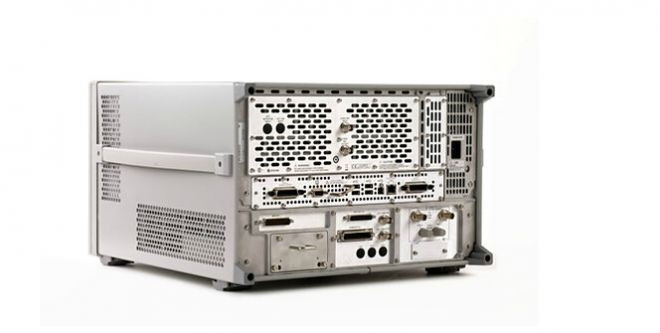

儀器名稱: N5230C PNA-L Microwave Network Analyzer---聯系電話18912657535 儀器型號: N5230C 4- ports 儀器品牌: Agilent 儀器指標: 300 kHz to 6/13.5/20 GHz and 10 MHz to 20/40/50 GHz
Key Features & Specifications
- 300 kHz to 6/13.5/20 GHz and 10 MHz to 20/40/50 GHz
- 2- or 4- ports with two built-in sources
- 110 dB system and 122 dB receiver dynamic range, 32,001 points, 32 channels
- < .006 dB rms (Option 22x)
- Measurement speed: 4 to 9 μs per point
Description
Note: As of November 30th, 2013 the N5230C will no longer be available. Replacement products are the N523xA PNA-L Series.
www.agilent.com/find/pna
The PNA-L is designed for your general-purpose network analysis needs and priced for your budget.
- 300 kHz to 6 GHz, 2-port
- 300 kHz to 13.5 GHz, available in 2- and 4-port
- 10 MHz to 20 GHz, available in 2- and 4-port
- 10 MHz to 40 GHz, 2-port
- 10 MHz to 50 GHz, 2-port
Intuitive operation simplifies and speeds measurements

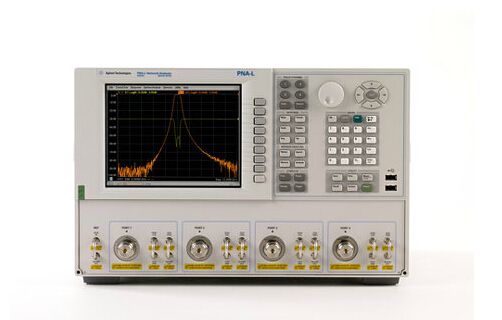

The PNA-L offers a 8.4 inch touch screen, simple interface with pull down menus, hard and soft keys, and online help.
PNA Firmware, Upgrade and Support
PNA-L option configurations
To add options to a product, order the corresponding item number.
Description
For N5230C Additional information
Frequency range and test set (Mandatory, choose only one)
Option 020 300 kHz–6 GHz 2-port standard test set N5230C-020
Option 025 300 kHz–6 GHz 2-port configurable test set and extended power range N5230C-025
Option 120 300 kHz–13.5 GHz 2-port standard test set N5230C-120
Option 125 300 kHz–13.5 GHz 2-port configurable test set and extended power range N5230C-125
Option 140 300 kHz–13.5 GHz 4-port standard test set N5230C-140
Option 145 300 kHz–13.5 GHz 4-port configurable test set and extended power range N5230C-145
Option 146 300 kHz–13.5 GHz 4-port configurable test set, extended power range N5230C-146 Option 080 recommended
and internal second source
Option 220 10 MHz–20 GHz 2-port standard test set N5230C-220
Option 225 10 MHz–20 GHz 2-port configurable test set and extended power range N5230C-225
Option 240 300 kHz–20 GHz 4-port standard test set N5230C-240
Option 245 300 kHz–20 GHz 4-port configurable test set and extended power range N5230C-245
Option 246 300 kHz–20 GHz 4-port configurable test set, extended power range N5230C-246 Option 080 recommended
and internal second source
Option 420 10 MHz–40 GHz 2-port standard test set N5230C-420
Option 425 10 MHz–40 GHz 2-port configurable test set and extended power range N5230C-425
Option 520 10 MHz–50 GHz 2-port standard test set N5230C-520
Option 525 10 MHz–50 GHz 2-port configurable test set and extended power range N5230C-525
Measurement applications
Option 010 Time domain for 6 GHz model N5231C-010
Option 010 Time domain for 13.5, 20, 40 or 50 GHz model N5230C-010
Option 080 Frequency offset measurements N5230C-080
Option 082 Scalar-calibrated converter measurements N5230C-082 Option 080 required
Option 5501 4-port measurement application N5230C-550 Not available on 4-port models.
Requires test set Option xx5 or xx6
Option 5511 N-port capabilities for 6, 13.5 or 20 GHz model N5231C-551 Requires test set Option xx5 or xx6
Option 5511 N-port capabilities for 40 or 50 GHz model N5230C-551 Requires test set Option xx5 or xx6
Accessories
Option 1CM Rack mount kit without handles N5230C-1CM
Option 1CP Rack mount kit with handles N5230C-1CP
Calibration documentation
Option 1A7 ISO 17025 compliant calibration N5230C-1A7
Option A6J ANSI Z540 compliant calibration N5230C-A6J
Option UK6 Commercial calibration certificate with test data N5230C-UK6
Calibration software for self-maintainers
Option 8972 Perpetual license for built-in performance test software for N5230C-897
Agilent inclusive calibration
Option 8982 Perpetual license for built-in performance test software for N5230C-898
